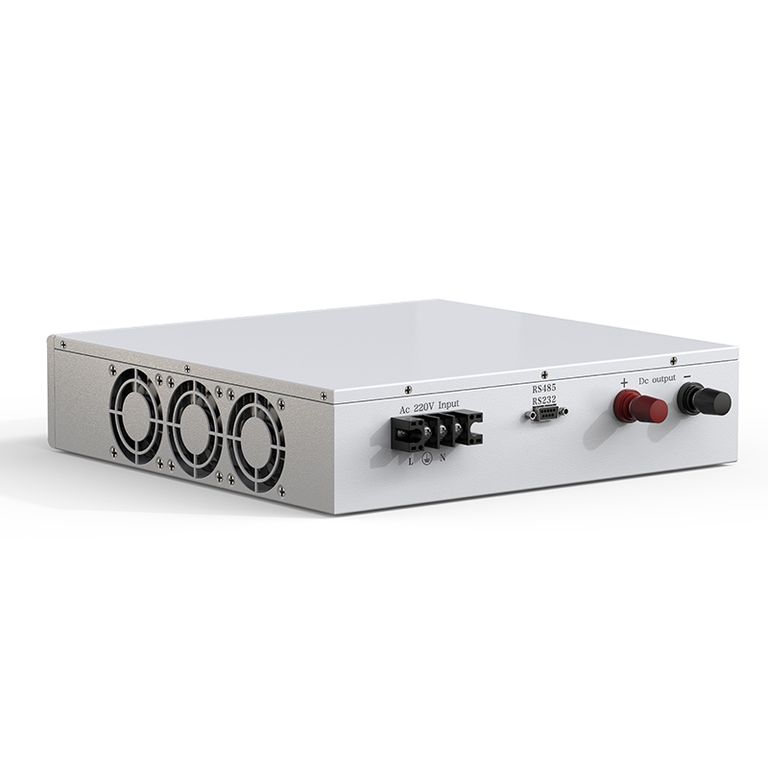

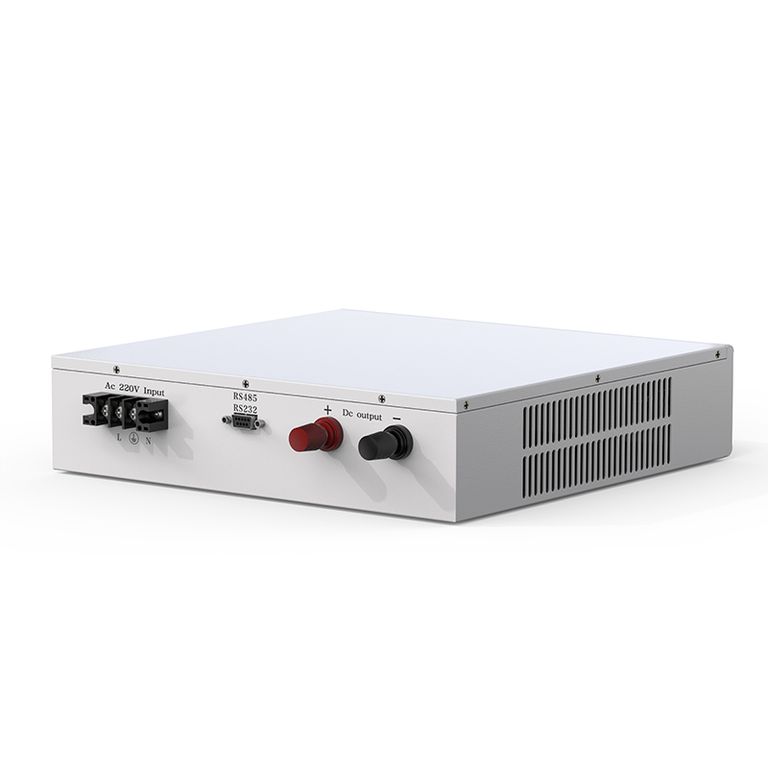

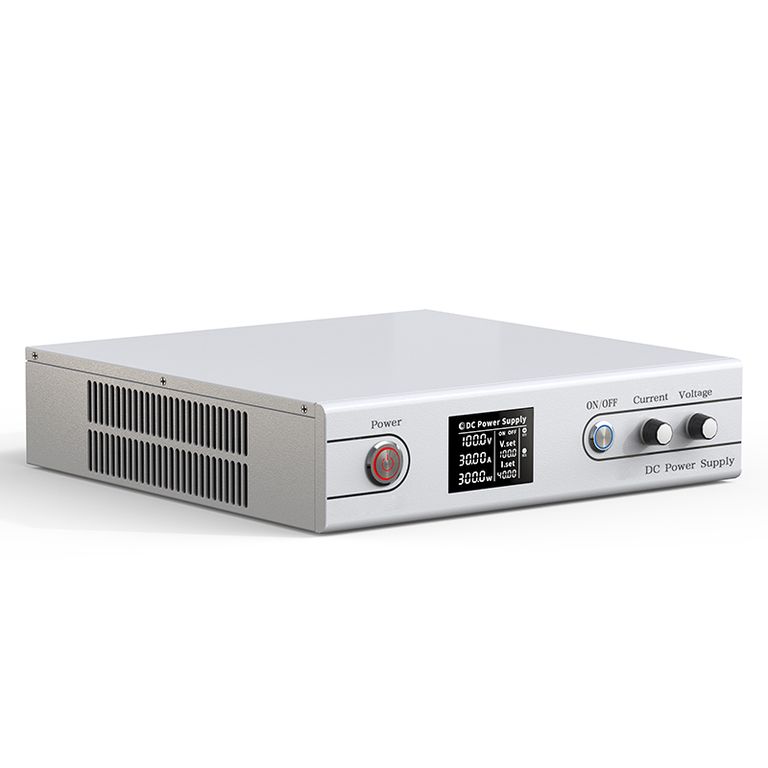

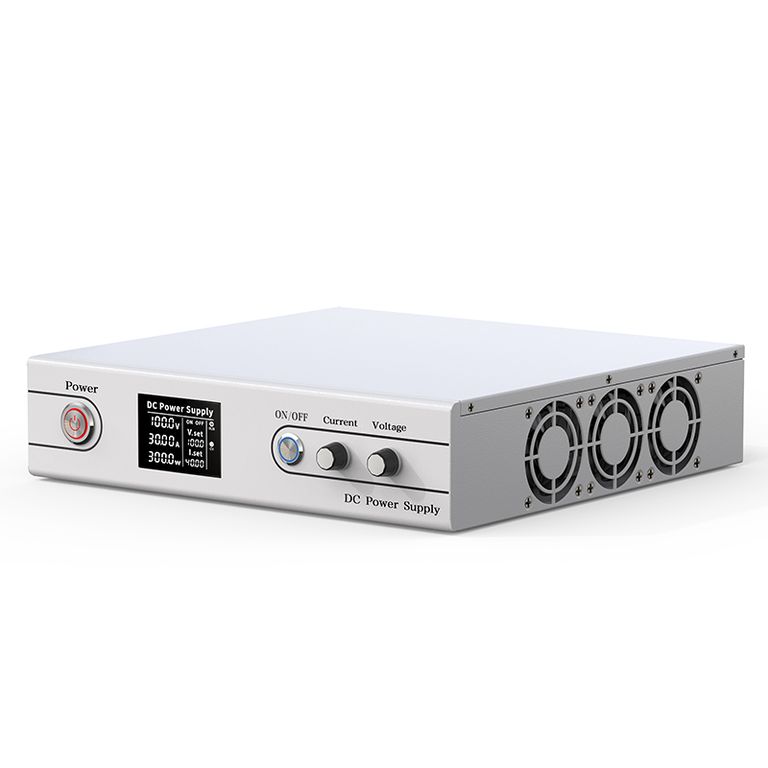

4KW Series programmable DC power supply

Input voltage

Single-phase AC220V±15% or three-phase AC380V±15% 50/60HZ

Output voltage

The range of 0～100% can be set，it can be selected within the range of DC 5-2000V

Output current

The range of 0～100% can be set，it can be selected within the range of DC 1-200A

Output power

It can be selected within the range of 4KW(P=U*I，for example 200V*20A=4000W)

Efficiency

≥90%(Test under full - load condition)

Load regulation rate

CV≤0.5％；CC≤1％

Control accuracy

Voltage: 0.5％±10mV，Current: 1％±100mA

Read back accuracy

Voltage±0.5% F.S ,Current±1% F.S

Response time

No-load rise time:≤200ms,Full-load rise time:≤300ms

Voltage ripple

V-PP≤0.5%

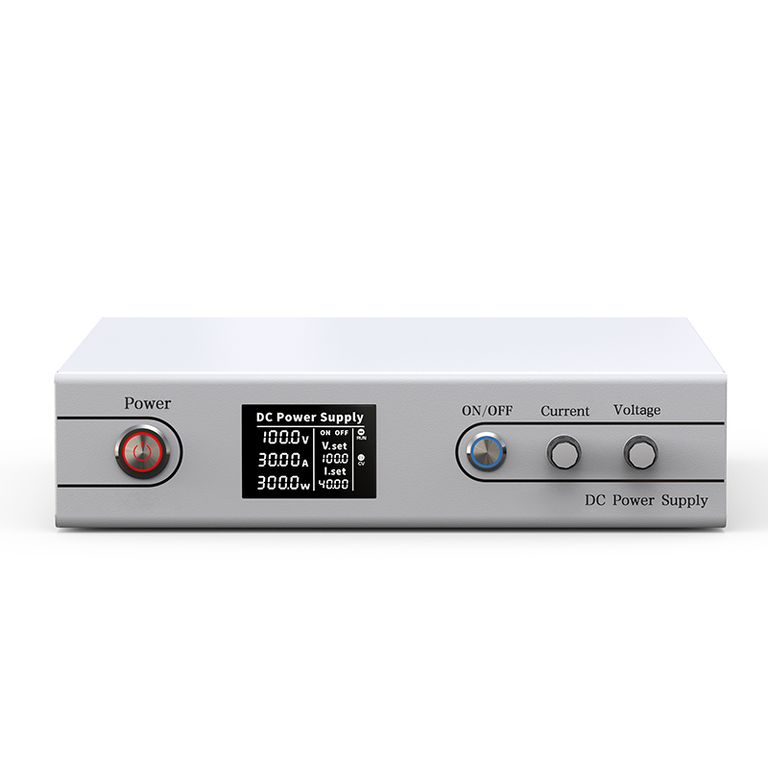

Display

The 61*42mm high-definition LCD is used for display,and the voltage,current and power are all shown in 4 digits

Power-on state

The output can be set to be on or off(The default setting is off)

Protection

Output over-voltage,over-current,over-load,short-circuit and over-temperature

Heat dissipation method

Intelligent temperature - controlled fan for heat dissipation

Fault prompt

When a power supply fails, the "fault" status indicator lights up

Setting method

By digital encoders,the set value has power-off memory

Output control

ON/OFF button

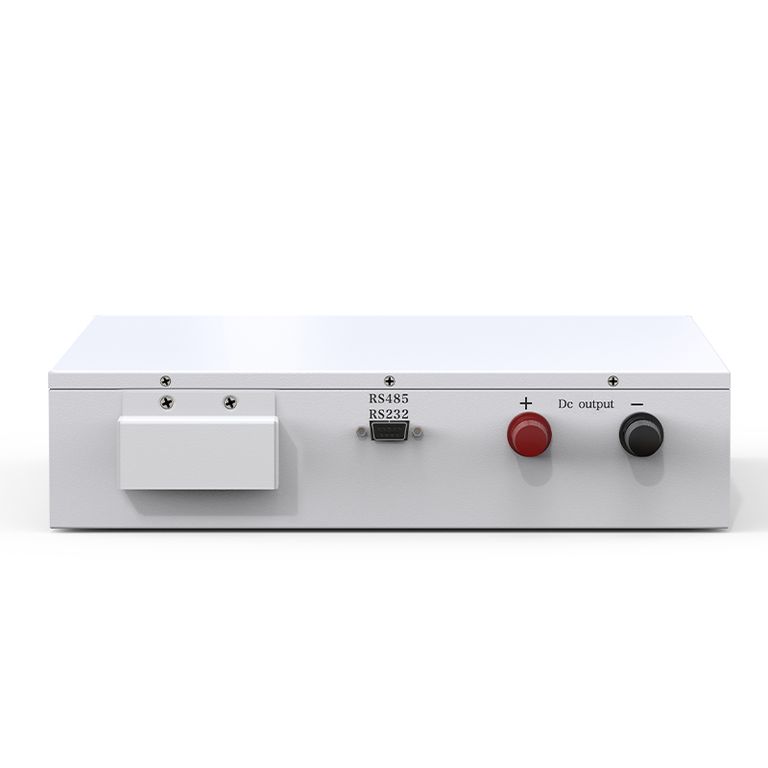

Communication interface

RS485 and RS232 are optional

Insulation strength

Input - output: AC1500V, 10mA, 1 minute

Input - chassis: AC1500V, 10mA, 1 minute

Output - chassis: AC1500V, 10mA, 1 minute

Operating environment requirements

Indoor, altitude ≤ 2000m, relative humidity: ≤ 80% (non - condensing), ambient temperature (-15 - 45)℃, pollution degree: 2

Storage environment requirements

Indoor, relative humidity: ≤ 80%, ambient temperature: (-20 - 70)℃

Dimensions

L300*W305*H75 mm

Weight

6kg

Model

Output voltage

Output current

Output power

ZK-SPS-5V200A-2

0-5V

0-200A

1000W

ZK-SPS-10V200A-2

0-10V

0-200A

2000W

ZK-SPS-12V200A-2

0-12V

0-200A

2400W

ZK-SPS-15V200A-2

0-15V

0-200A

3000W

ZK-SPS-30V80A-2

0-30V

0-80A

2400W

ZK-SPS-30V100A-2

0-30V

0-100A

3000W

ZK-SPS-30V120A-2

0-30V

0-120A

3600W

ZK-SPS-30V133A-2

0-30V

0-133A

4000W

ZK-SPS-60V50A-2

0-60V

0-50A

3000W

ZK-SPS-60V60A-2

0-60V

0-60A

3600W

ZK-SPS-60V67A-2

0-60V

0-67A

4020W

ZK-SPS-100V25A-2

0-100V

0-25A

2500W

ZK-SPS-100V30A-2

0-100V

0-30A

3000W

ZK-SPS-100V35A-2

0-100V

0-35A

3500W

ZK-SPS-100V40A-2

0-100V

0-40A

4000W

ZK-SPS-150V20A-2

0-150V

0-20A

3000W

ZK-SPS-150V25A-2

0-150V

0-25A

3750W

ZK-SPS-150V27A-2

0-150V

0-27A

4050W

ZK-SPS-200V15A-2

0-200V

0-15A

3000W

ZK-SPS-200V20A-2

0-200V

0-20A

4000W

ZK-SPS-250V10A-2

0-250V

0-10A

2500W

ZK-SPS-250V12A-2

0-250V

0-12A

3000W

ZK-SPS-250V16A-2

0-250V

0-16A

4000W

ZK-SPS-300V8A-2

0-300V

0-8A

2400W

ZK-SPS-300V10A-2

0-300V

0-10A

3000W

ZK-SPS-300V12A-2

0-300V

0-12A

3600W

ZK-SPS-400V8A-2

0-400V

0-8A

3200W

ZK-SPS-400V10A-2

0-400V

0-10A

4000W

ZK-SPS-500V5A-2

0-500V

0-5A

2500W

ZK-SPS-500V6A-2

0-500V

0-6A

3000W

ZK-SPS-500V8A-2

0-500V

0-8A

4000W

ZK-SPS-600V4A-2

0-600V

0-4A

2400W

ZK-SPS-600V5A-2

0-600V

0-5A

3000W

ZK-SPS-600V6A-2

0-600V

0-6A

3600W

ZK-SPS-1000V1A-2

100-1000V

0-1A

1000W

ZK-SPS-1000V2A-2

100-1000V

0-2A

2000W

ZK-SPS-1000V3A-2

100-1000V

0-3A

3000W

ZK-SPS-1000V4A-2

100-1000V

0-4A

4000W

ZK-SPS-1200V1A-2

100-1200V

0-1A

1200W

ZK-SPS-1200V2A-2

100-1200V

0-2A

2400W

ZK-SPS-1200V3A-2

100-1200V

0-3A

3600W

ZK-SPS-1500V1A-2

100-1500V

0-1A

1500W

ZK-SPS-1500V2A-2

100-1500V

0-2A

3000W

ZK-SPS-2000V1A-2

100-2000V

0-1A

2000W

ZK-SPS-2000V2A-2

100-2000V

0-2A

4000W
